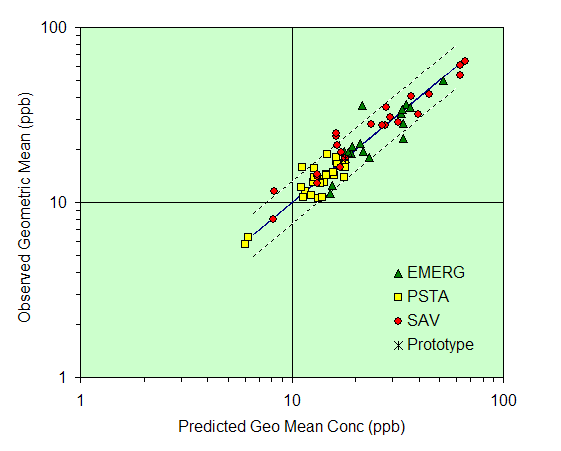

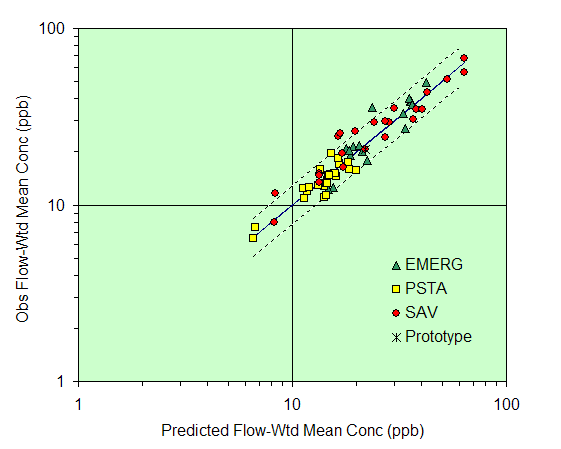

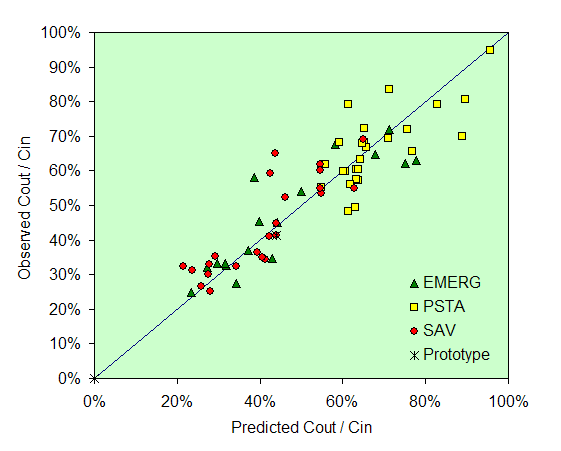

| Observed & Predicted Outflow Concentrations | ||||||||
| Calibrations: | Emergent / NonEmergent | All Datasets | ||||||
|
||||||||

|
||||||||
| Model Calibrated to Prototypes (Boney Marsh, Cell4, STC-8), Then Applied to Other Datasets | ||||||||
| Dashed Lines = 90% Confidence Interval | ||||||||
| Goodness of Fit | Flow-Wtd | Geometric | ||||||
| R-Squared | 91% | 89% | ||||||
| Resid Std Error | 15% | 17% | ||||||
| 06/07/02 | ||||||||
