Calibration Charts			Case = HARNEY_2 ,  Cell  =  -															05/31/05
								compiled by WSI
Simulation Period			01/01/89	12/31/98
Output Period:			01/01/89	12/31/98
Calibration Period:			01/01/90	12/31/98
Predicted Values for Calibration Period						Calibration Set:		RES_3		Paired Observed & Predicted Values						FW	Not FW	GM /
Mean Depth			204	cm		K	5.0	m/yr				Depth	Flow	Load	FWM	GM	GM	FWM
Frequency Z < 10 cm			0%			C0	3.0	ppb				cm	cm/d	mg/m2-d	ppb	ppb	ppb	-
Mean Hyd Load			22.1	cm/d		C1	150	ppb		Count		110	110	110	110	110	110
Mean P Load			3930	mg/m2-yr		C2	0	ppb		Observed		201.1	22.2	11.28	50.8	49.4	49.3	0.97
Mean Flow/Width			1533	m2/day		Z1	40	cm		Predicted		204.2	22.2	10.40	46.9	44.7	44.6	0.95
Hydraulic Resid Time			9	days		Z2	100	cm		Mean Resid		-3.2	0.0	0.87	3.9	4.7	4.7	0.02
Inflow Conc			49	ppb		Z3	400	cm		Bias %		-2%	0%	8%	8%	11%	10%	2%
FWM Outflow Conc			47	ppb		Avg Int	30	days		Residual SE%		6%	#N/A	0%	30%	30%	30%
GeoMn Outflow Conc			45	ppb		Area	24.52	km2

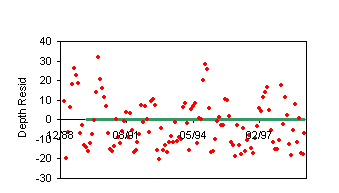

green line on axis  = calibration period					red symbols = observed				blue lines /symbols = predicted				Resid = observed - predicted,   conc log-transformed
